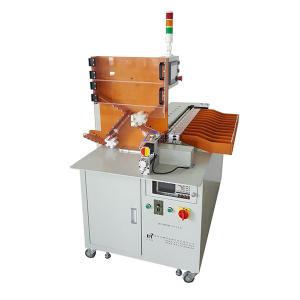

11 Channel Automatic Cell Grading Tester For Batteries Testing Equipment
Main function:
Automatic shift test the voltage internal resistance of the batties
Product characteristics:
► Automatic alarm shutdown of the faulty machine during use
► Can increase the function of scanning the batties
► Optional distribution cell dynamic tester, which actually reflects the quality and load performance of the cell
► It can be customized to save labor costs
| BT-1810 cell sorting machine |
| Power | AC220V 50/60HZ 1.6KW |
| Air pressure | 0.4-0.8Mpa,No water, no impurities |
| battery cell range | 14430/14500/18500/18650/21700/26650/26700/32650/32700 |
| Standard IR test | HK3560 |
| Optional tester | HIOKI3561/HIOKI2562/HK3561 |
| Efficiency | About 5000pcs/h |
| Control device | PLC Touch screen control |
| Run power | Stepper motor |
| Voltage setting | 0.00000V-6.0000V |
| Internal resistance | 000.00mΩ-999.99mΩ |
| Channel | 8-16 OK,1NG |
| Test data | U disk storage,can be copied to the computer |
| Communication interface | RS485 |
| Test method | 4-wire system |
| Test pin | DZ100-214A30G |
| Dimensions | L1100*W930*H1390MM/ L2260*W930*H1390MM |
| Weight | About 110/160KG |
| Usage | Coin Cell Test |
| Warranty | 2 Years |
FAQ
A:How long is the guarantee period of the machine?
B:Our machines are guaranteed for two years, during which the company will repair them free of charge if there is any problem.
A:Do you support after sales service?
B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe
and the United States, Southeast Asian countries, there is a site in India
A:What scope does the product apply to?
B:Company 12 years committed to column Battery Pack Automation Production Equipment, and column Battery
Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,
power batteries, automotive batteries, etc.
